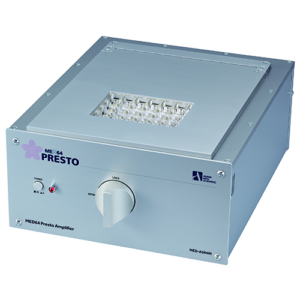

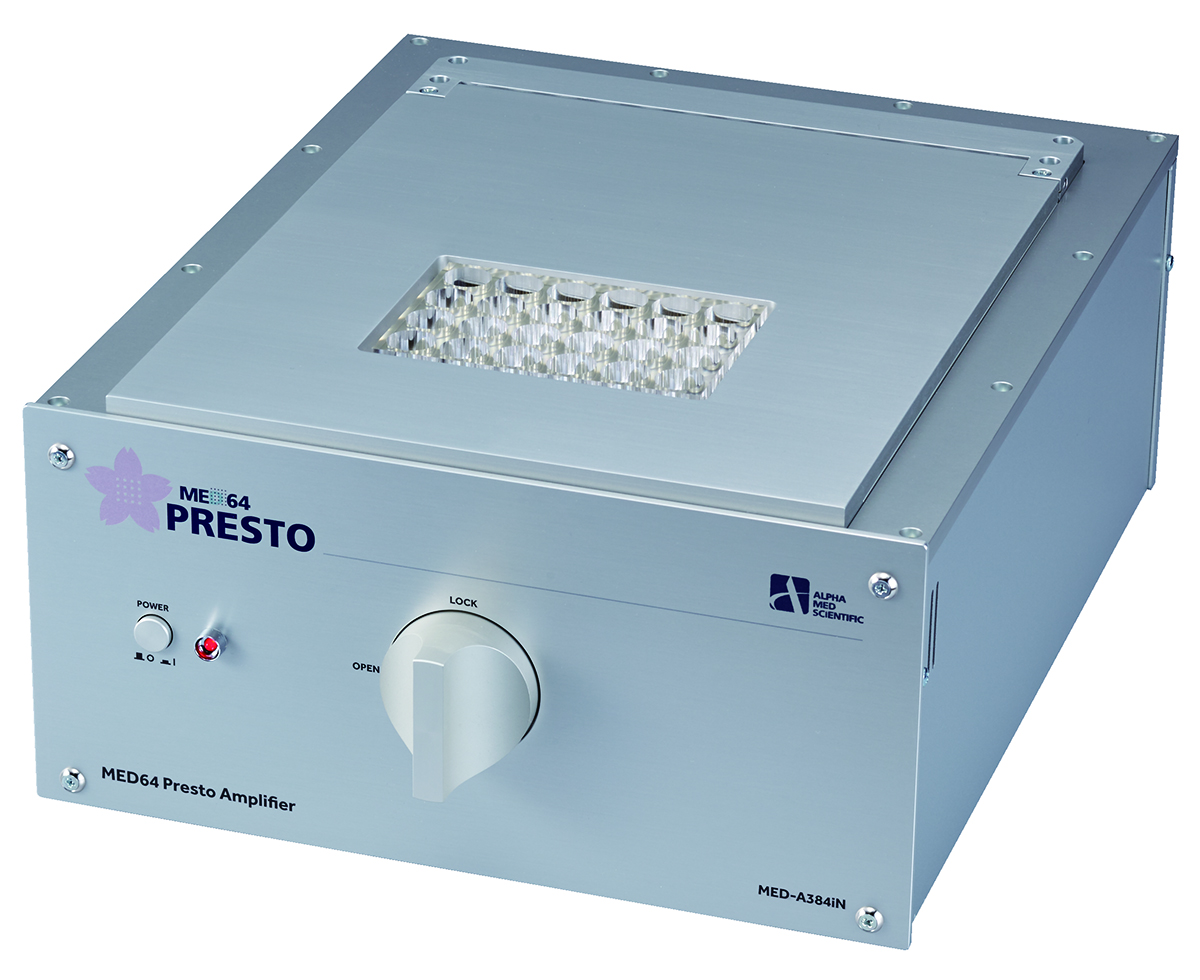

MED64 Presto
Discover the beauty that only the highest-sensitivity MEA can bring to your research!
The MED64 Presto is a microelectrode array (MEA) system that incorporates the industry leading sensitivity of the MED64 platform in an easy to use multi-well format. Modern, intuitive, easy to use software makes data collection and analysis effortless.
The MED64 Presto is engineered for researchers who need the correct answer to their scientific inquiries and reveals data that can be missed by other platforms.
DOWNLOAD brochure
Features
- Flexible 6, 24, 48, and 96 multi-well formats.
- Industry leading high-sensitivity, low-noise system (0.9 µV (< 3 kHz)), providing excellent signal-to-noise.
- New carbon nanotube electrodes provide a friendly substrate for cells to adhere.
- Transparent glass base allows clear visibility of cells and compatibility with imaging.
- Innovative well design (sakura), and ready-to-use accessories that help plating cells.
- Integrated stage heater and environmental chamber.
- Modern, state of the art software.
High-sensitivity Electrodes in Multi-well Format
The MED64 Presto’s electrodes are engineered for sensitivity to reveal data that can be missed by other systems. Better sensitivity mean more signals can be detected from your cells. Presto’s new carbon nanotube technology provides a flatter electrode surface compared to traditional MEA electrodes resulting in better cell adhesion onto the electrodes.
Application Note:
- In vitro Micro-electrode array assay for evaluating in vivo-like convulsive activity in hiPSC-derived neuron and astrocyte co-culture
- Functional characterization of human induced pluripotent stem cell-derived sensory neurons using a high-sensitivity micro-electrode array
- Neurotoxicology screening using a high-sensitivity MEA platform
iPSC-neurons cultured on the microelectrodes in the MEA plate (top) and recorded raw data (bottom)
Varieties of MEA Plates

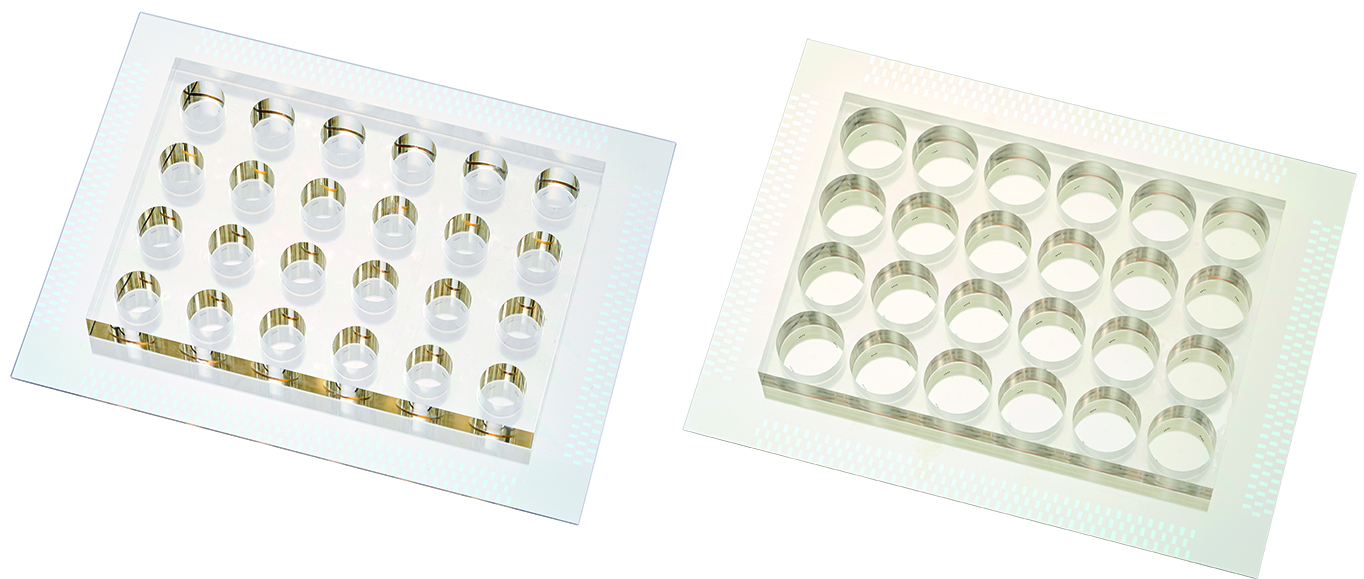

MEA 24well Plate-eco (left) and MEA 24-well Plate-comfort (right)

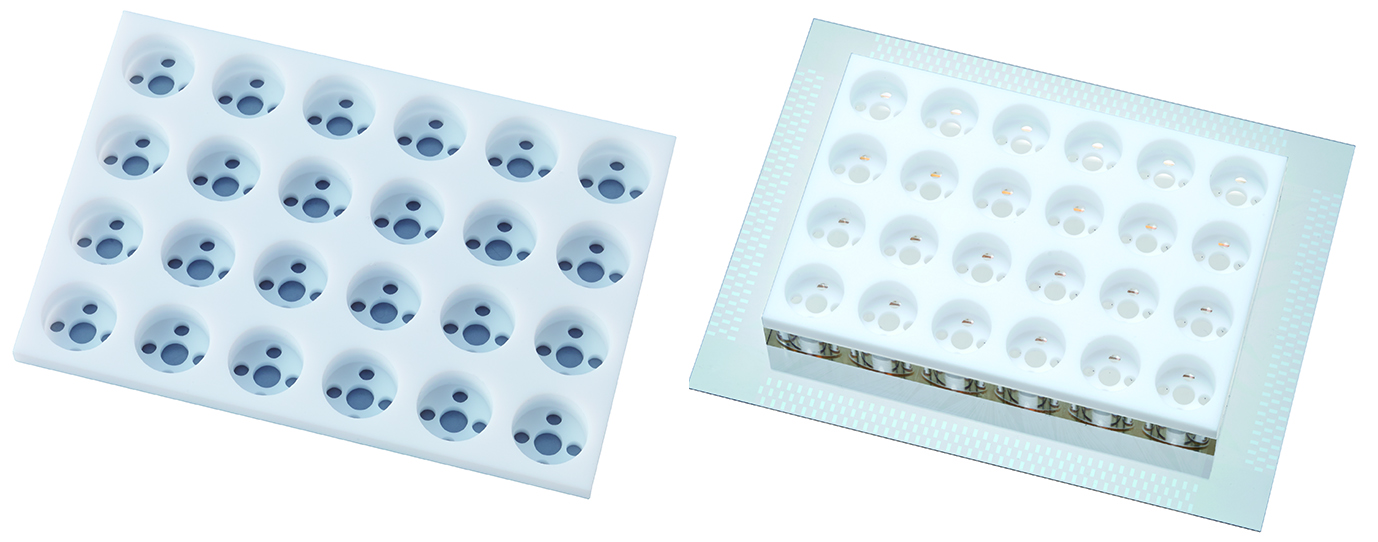

CellSpotter-comfort (left) and the CellSpotter installed on the MEA Plate (right)
The MED64 Presto’s MEA plates are available with 6, 24, 48, and 96 well format. Transparent plates allow for easy viewing of cells. The 24-well plate has 3 types of well shapes. Sakura plate is engineered for easy and accurate seeding of cells. CellSpotter cartridge is available to help your cell seeding both for eco and comfort plate.
MEA 24-well Plate-sakura (left) and zoom-up vies of a well (right)
| Well format | Parts NO | No. electrode / well | Well size |
|---|---|---|---|
| MEA 24well Plate-comfort | MED-Q2430L | 16 | φ16mm x 10mm(h) |
| MEA 24well Plate-eco | MED-Q2430M | 16 | φ11mm x 10mm(h) |
| MEA 24well Plate-sakura | MED-Q2430S | 16 | φ5mm (bottom) x 10 mm(h) |
| MEA 48well Plate | MED-Q4830 | 8 | 16mm x 7mm x 10mm(h) |
| MEA 96well Plate | TBN | 4 | φ7mm x 10mm (h) |
| MEA 6Well Plate | MED-Q630 | 64 | φ22mm x 10mm (h) |
Software

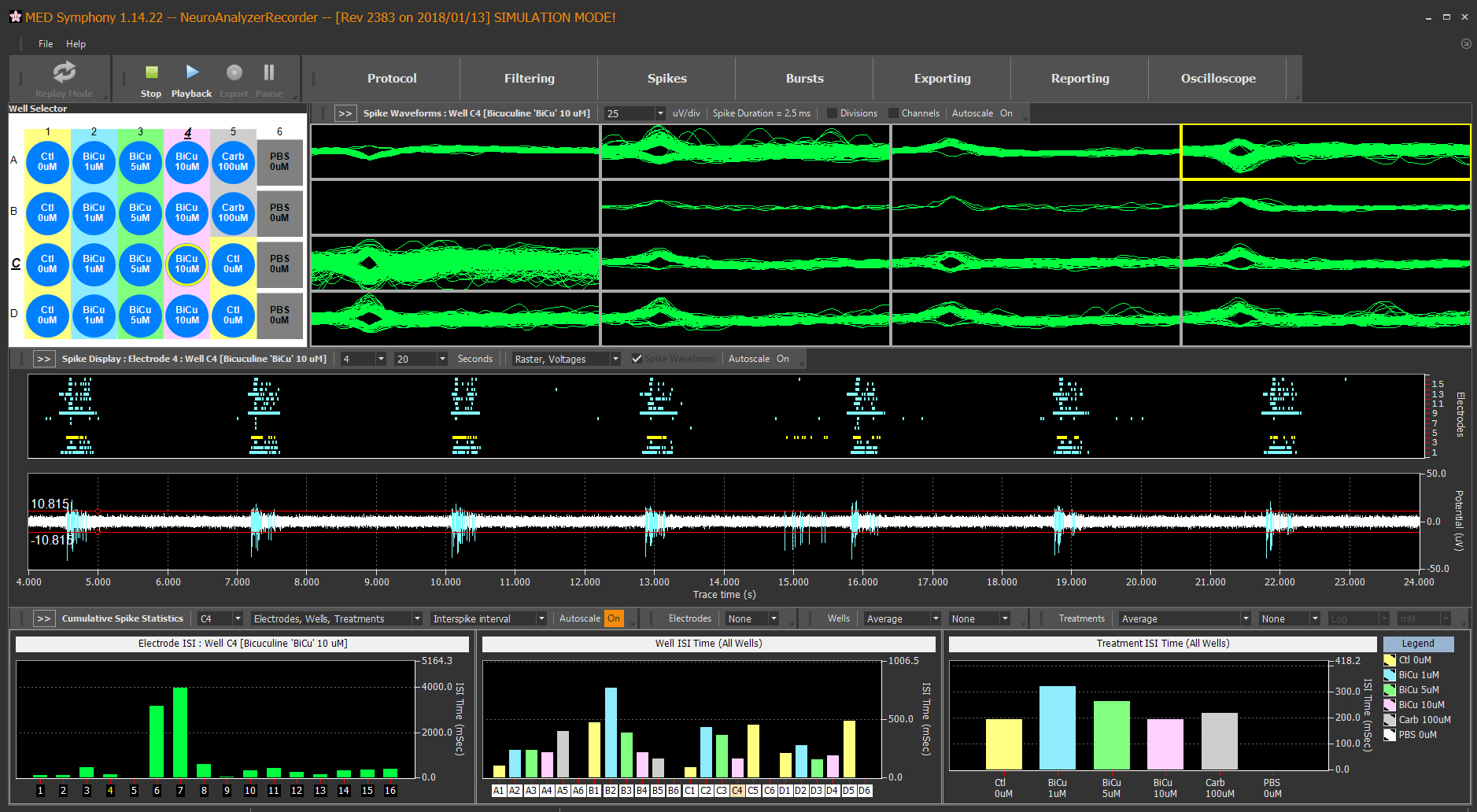

MEA Symphony: The navigator for your experiment and analysis!
- Navigate your experiments from setting up experimental assays to producing an analysis report.
- Automated spike detection and subsequent spike and burst analysis.
- Easy and quick set up for analysis parameters as well as manual setting is available.
- Observe all analysis during and post-recording, giving you correct answers to your scientific inquiries.
Specifications
| Amplifier | |
|---|---|
| Number of Channel | 384 |
| Gain | 1000x (fixed) |
| Sampling Rate | 20 kHz |
| RMS Noise | 1.2 μV (< 5kHz) 0.9 μV (<3 kHz) |
| High Pass Filter (LCF) Low Pass Filter (HCF) |
0.1Hz (fixed) 5 kHz (fixed) |
| Output Channel | 2 (for Trigger output) |
| Stimulation: Output | Voltage driven |
| Stimulation: Output electrode |
2 / 1well |
| Stimulation: Max. output voltage |
+/-2Vp |
| Electrode, Well | |
|---|---|
| Electrode Material | Carbon nanotube |
| Electrode Size | 50 μm x 50μm |
| Electrode Impedance | 7 kohm (Typ.) |
| Insulation Layer | Polyimide |
| Material | Substrate: Glass Well: Acrylic resin Lead: ITO |
| Temperature Controller | |
|---|---|
| Heater | Trangistor x 4 |
| Sensor | Sensor IC |
| Resolution | +/- 0.1℃ |
| Temperature Controller | Omron EG5C |
