MED Probe for Quad II / Allegro System

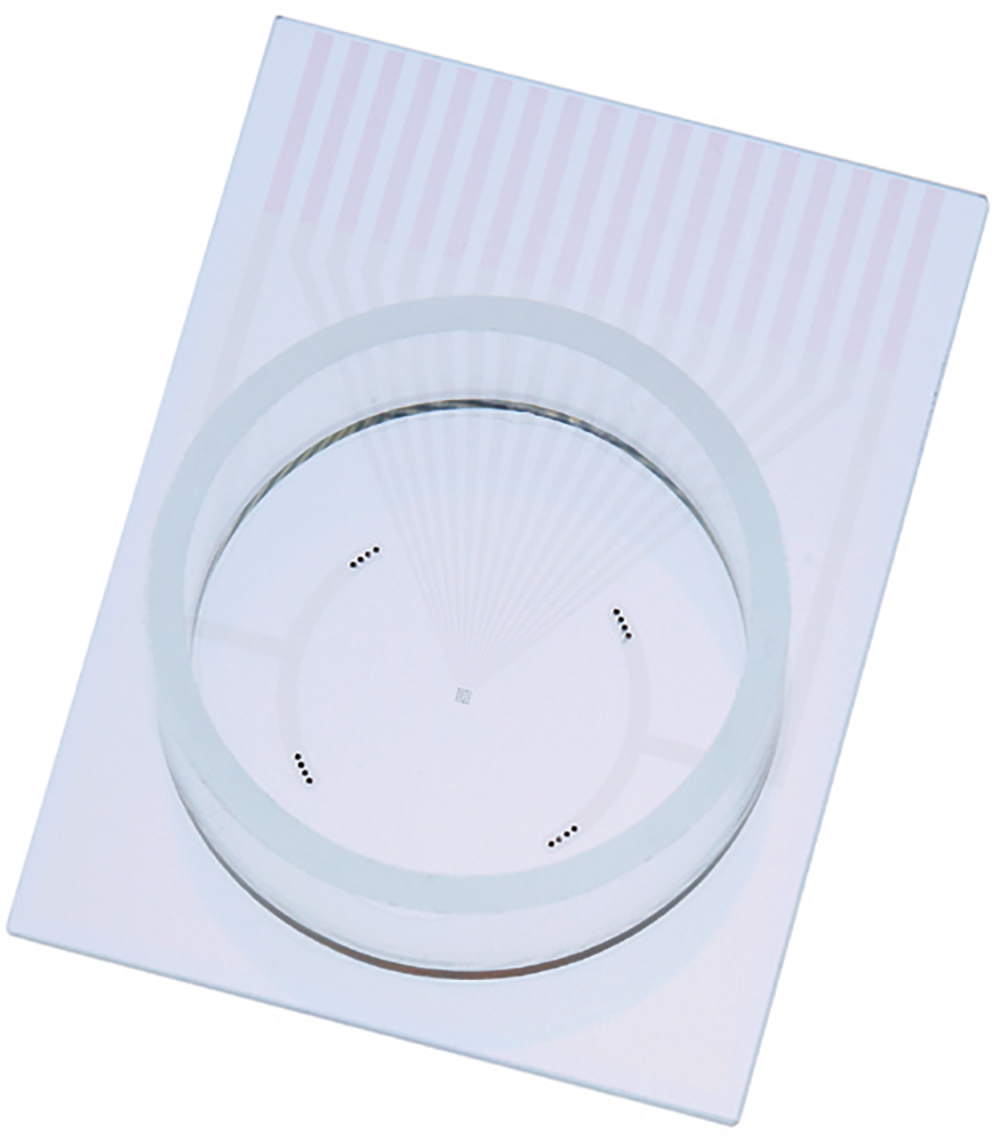

MED Probe 16 (for Quad II System)

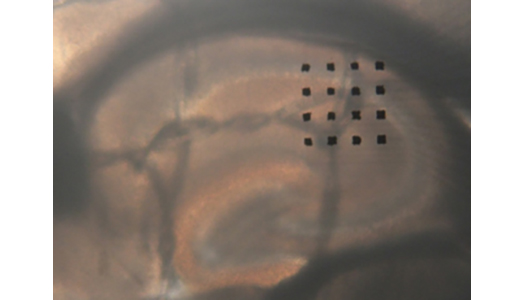

Hippocampal slice on the MED-PG515A

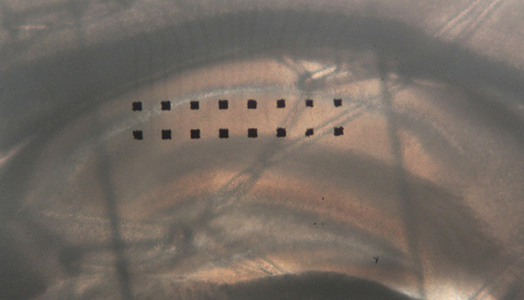

Hippocampal slice on the MED-PG5001A

Product Number	Electrode (Arrangement)	Array Size	Recording Electrodes		Reference Electrodes		Chamber Depth
			Size	Spacing	Type	Spacing (d)
MED-PG515A	16 (4×4)	0.5 x 0.5 mm	50×50 μm	150 μm	E	14 mm	10 mm
MED-PG501A	16 (2×8)	0.25 x 1 mm	50×50 μm	150 μm	E	14 mm	10 mm

Electrodes arrangement in a well

Product Number	Well				Recording Electrodes			Reference Electrodes
	Number	Diameter	Depth	Distance	Number / well	Size	Spacing	Type	Spacing (d)

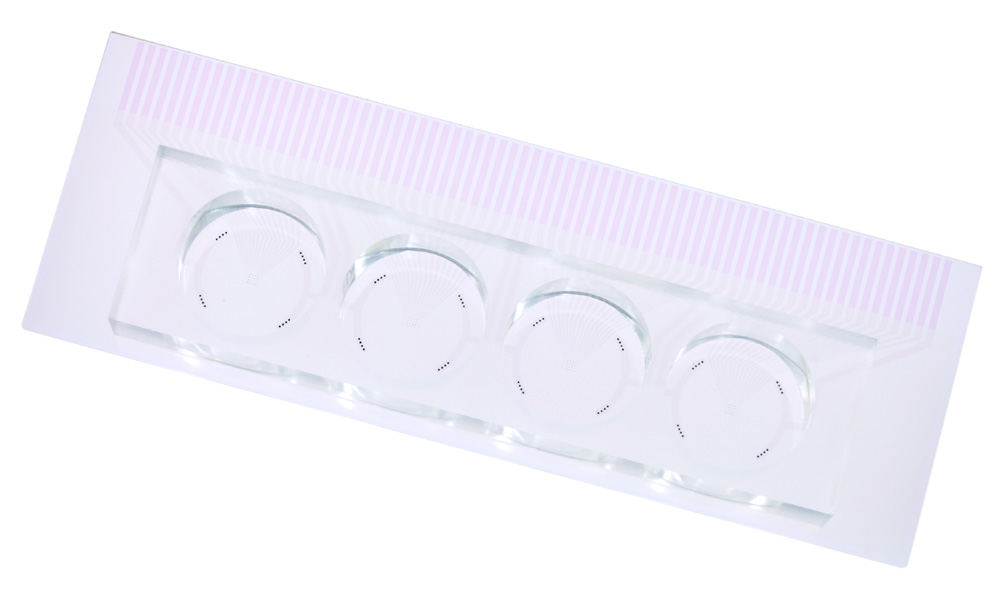

MED-P5NF30	4	φ16 mm	10 mm	18 mm	16	50×50 μm	300 μm	E	12 mm

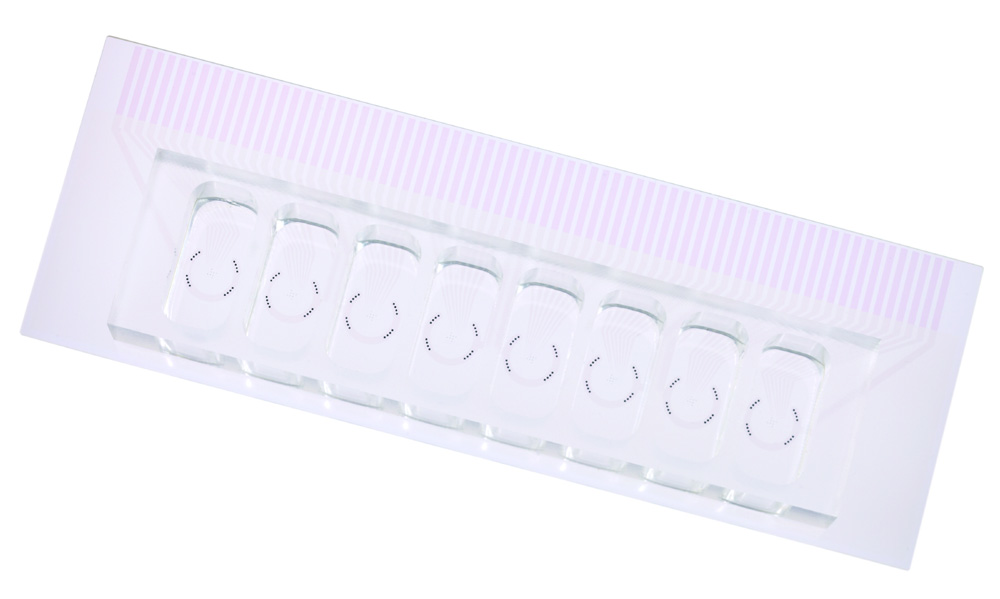

MED-P5N811	8	φ7.5x φ16 mm	10 mm	9 mm	8	50×50 μm	300 μm	E	5.5 mm
